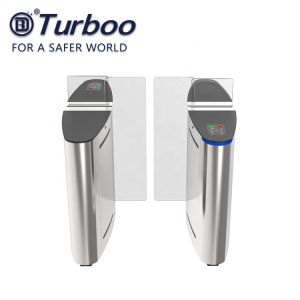

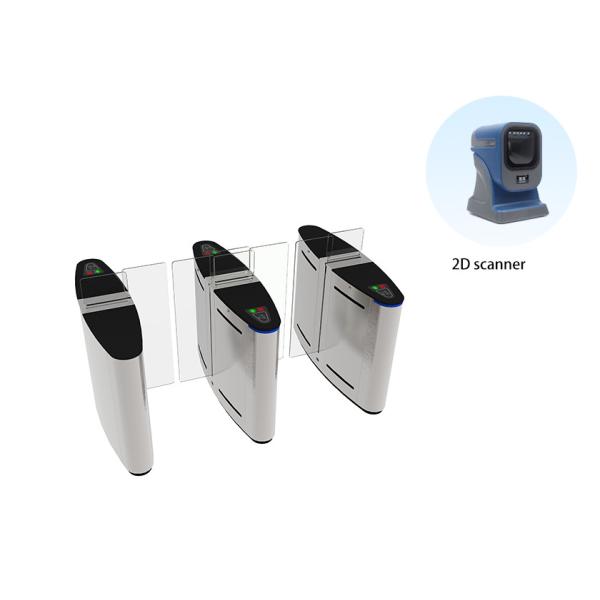

Sliding speed access control gate with finger print and face
recognition function
H608 model Bi-direction, or one direction permitted, one forbidden,
or one direction charged, one for free, and all the working molds
set by the buttons in the main control board.
Running stablely without noise and mechanical impact.The passing
person number of the persons can be set.Several ways of working
molds for your demand chosen.
Direction-guide lights in the turnstile to tell you whether the
direction to go or not,The standard electrical interface connected
with various kinds of reader and writer equipment
Description
All the gates models are space efficient security barriers, with a
compact design, yet offer sufficient space to integrate any access
control system. They can be mounted with display, passage counter,
card reader, token operation traffic lights, command console, alarm
system against unauthorized entries,interfaced with a PC through a
RS232(RS485,TCP-IP)line
| Model Number: | H608 |
| Product Size: | 1400*350*980mm |
| Pass Width: | <=600mm |
| Net Weight: | 95kg |
| Thickness: | 1.5mm |
| Material: | SUS304,Hairline 400# |
| Top cover Material: | 12mm man-made marble |
| Arm Material: | 10mm Transparent Acrylic+LED Strip |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5 pairs |
| Pass rate: | 30-35p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000 cycles |
FEATURES AND BENEFITS
• Use IC cards, ID cards, Bar code or magnetic cards as automatic
identification system and achieve access, attendance fees or
function
• A direction indicator, showed that pedestrian access to the
current status of, and guide pedestrians correct and smooth passage
• Display has been in use for statistics and numbers
• With voice and strobe light alerts
• A combination of infrared sensors and police ant illegal entry
into pedestrian access, the protection of pedestrians smooth and
the prevention of the channel following
• Double anti-clipping function, photocell antic lipping and
mechanical anti-clipping
• Auto re-set function, if no passing during identified
card-reading time, the system will reset automatically the
passengers are prohibited to pass until their second identified
reading
• The barrier can be set to delay closing in 1-60s after a valid
card-reading
Application
High class communities, intelligent buildings, hotels, subway
station, metro station, etc.
Our advantage:
1. 90% of production processes are developed by ourselves so we can
control the costs and provide the competitive price
correspondingly.
2. We use Baoxin Stainless steel, the best brand in China.
3. Our power supply is the best brand from Taiwan “Mingwell” or
“Fujia”.
4. We take 3M glue imported from American instead of the glass glue
which other counterparts use.
5. Germany “Optibelt” and American “Gates” is the belt we are using
now
